Canopy and Panel construction    Created 18 January 2004

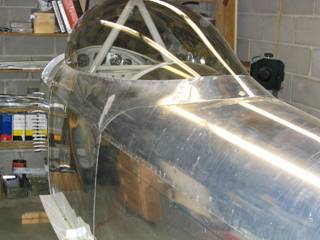

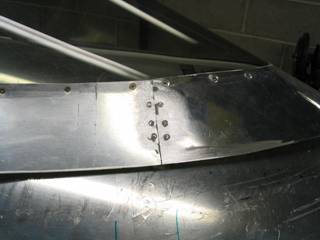

I attached the canopy with screws to the frame.   The side skirts didn't fit correctly in the rear and a cut them off and added a third piece at the back.

e

c

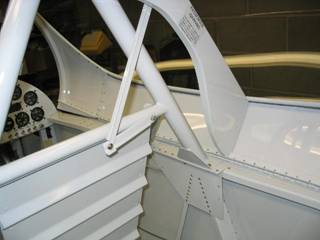

The open canopy is supported with a folding arm which is attached to the rear of the roll bar.

d

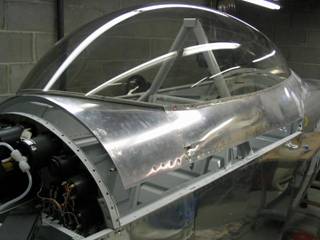

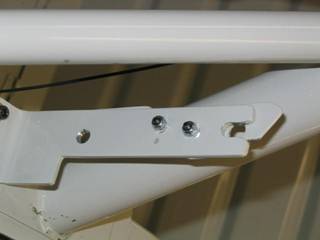

For cool air while on the ground,  a support  keeps the canopy raised and locked about four inches open.

f

c

I have added Van's recommended safety latch.

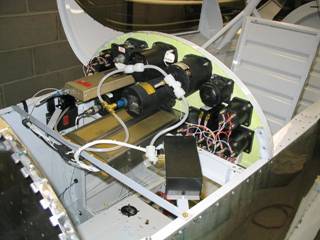

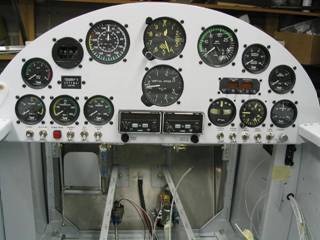

The airplane will be VFR night capable.  The panel is low cost, light weight and simple.   I laid it out using Visio, plotted it on a large plotter to mark the instrument and switch positions.   The instruments are positioned  and planned for later replacement with a Dynon HSI and panel mount GPS, VOR, Comm system.

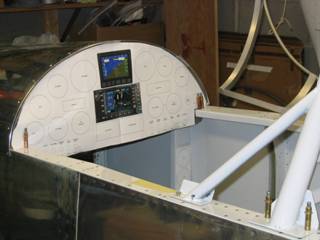

paper panel

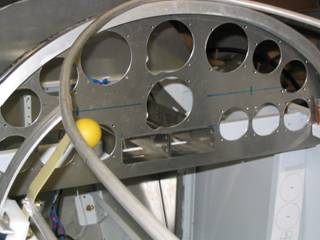

cut panel

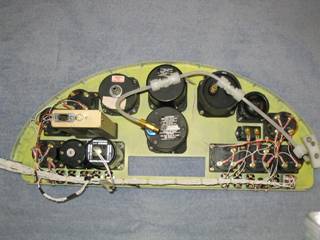

back of panel

a

b
