Finishing Kit

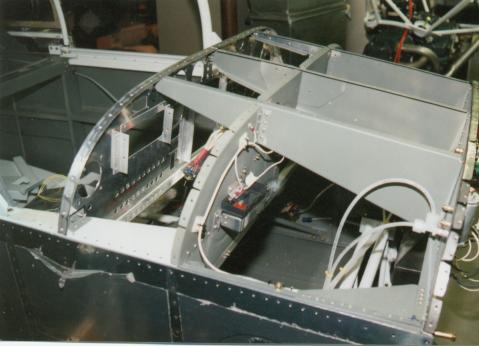

The upper brake line connection on the back of the reservoir should point down, unlike shown here.  The small gel cell is a back up for the Rocky Mtn Engine MicroMonitor.  I had to move this when I installed the Collins radios.

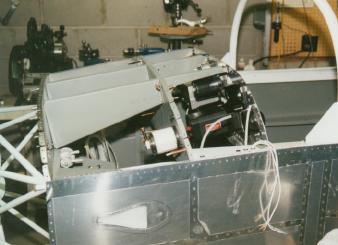

I wired most of the panel on the bench and used connectors for installation.  DB-9 connectors were used for the signal and low power circuits and Molex connectors were used for higher power.

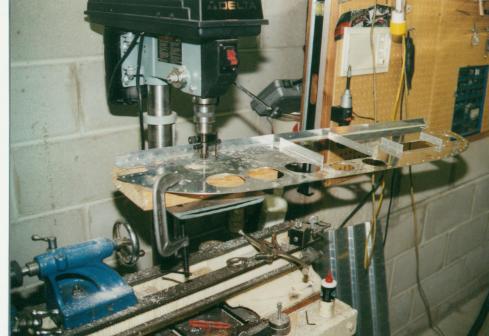

The panel instrument holes were fly cut.  Be careful here.  The screw holes were drilled with a template.

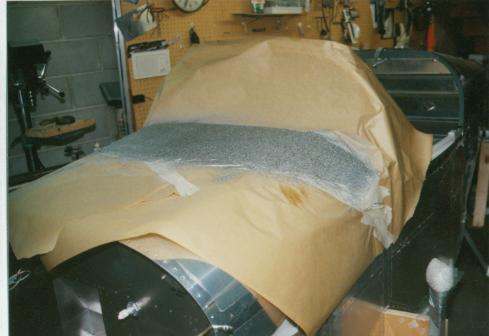

The inside under the windscreen must be painted before the screen is finally installed.  I used two-part speckle paint with a rough finish.

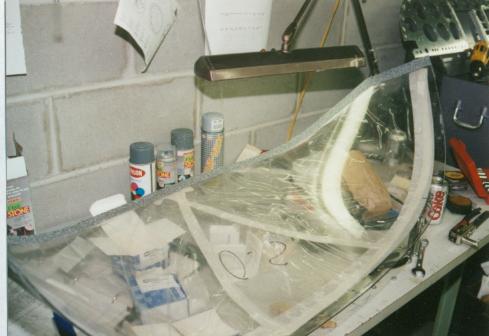

Don't forget to paint the inside bottom of the windscreen so you don't see the back side of the fairing.
